Label Printing for Measurements and Workspaces in Essentials 2.0 Follow

ColorFlex L2 Essentials Version 2025.2 and above is required.

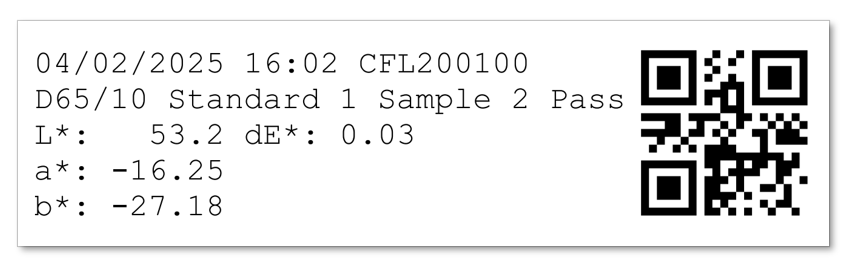

Sample Label Printing
Sample Label Printing is supported in Essentials when a compatible label printer is connected. The Brother QL-800 High-Speed Professional Label Printer is the recommended and supported model for use with ColorFlex L2 Essentials. This printer is not sold by HunterLab and must be purchased separately by the customer.
1. Plug the label printer into the USB‑A port on the left side of the ColorFlex L2.

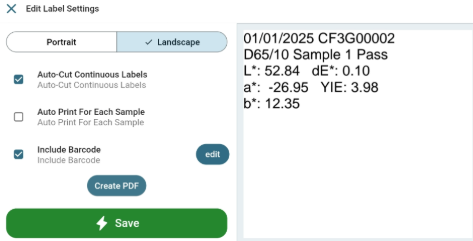

2. In Edit Workspace/Export Options, tap the Label Settings button, users can configure the label orientation (portrait or landscape), and select options such as:

• Auto Cut Labels
• Auto Print for Each Sample
• Include Barcode

After adjusting the desired settings, click the Create PDF button. A sample label will be displayed on the right side of the screen for preview. Save the WorkSpace when finished.

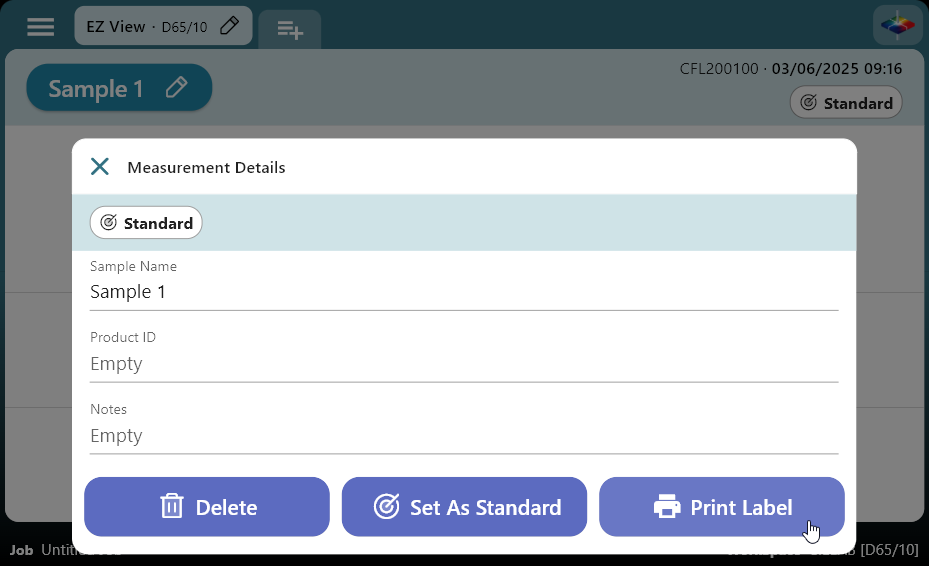

3. Users can tap a sample name in EZ View, Color Data Table View, or Spectra Data Table View. This will open the Sample Measurement Details dialog, where users can click “Print Label” to print the label for that specific sample.
