How to use AutoSearch Standard function in Essentials 2.0 Follow

The Autosearch Standard feature automatically identifies any Workspace with passing tolerances each time a measurement is taken.
To enable and use Autosearch Standard mode:

• Enable Autosearch Standard:

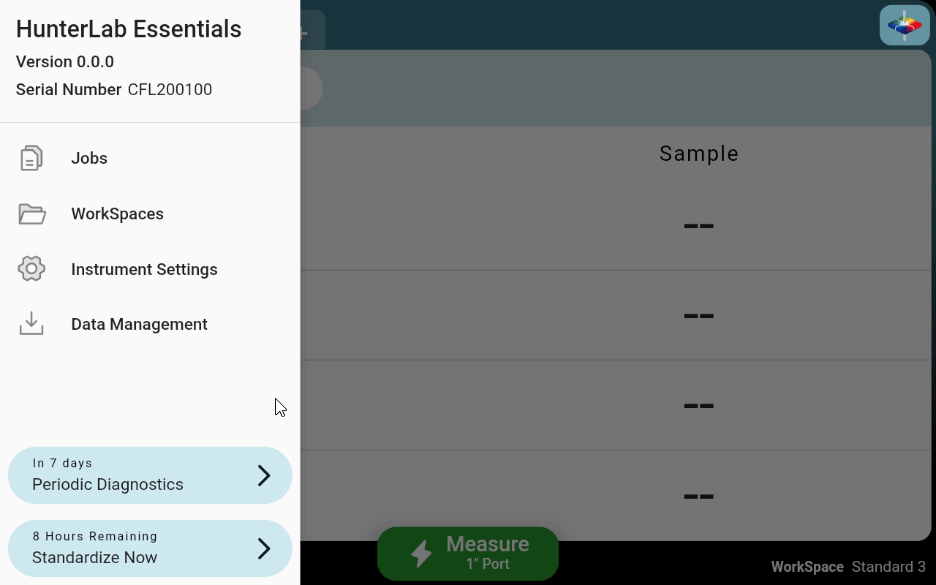

  • Go to SYSTEM MENU → INSTRUMENT SETTINGS → AUTOSEARCH STANDARD.
  • Check "AutoSearch Standard Enabled" and configure the standardization mode and measurement options.

                Note: Once enabled, the measurement options (configuration and prompt settings) set here will override those in Workspace settings.

• Select Workspaces for Autosearch:
  • Open EDIT WORKSPACE → MEASUREMENT OPTIONS for each Workspace you want to include.
  • Check "INCLUDE IN AUTOSEARCH STANDARD" to add it to the Autosearch process.

              Note: Only WorkSpaces with Physical, Numeric, or Hitch standards will be included in AutoSearch. Your WorkSpace must also have at least one tolerance applied.If you want to exclude a WorkSpace from AutoSearch, you can always exclude it in the WorkSpace settings page for that WorkSpace.

• Take a Measurement:

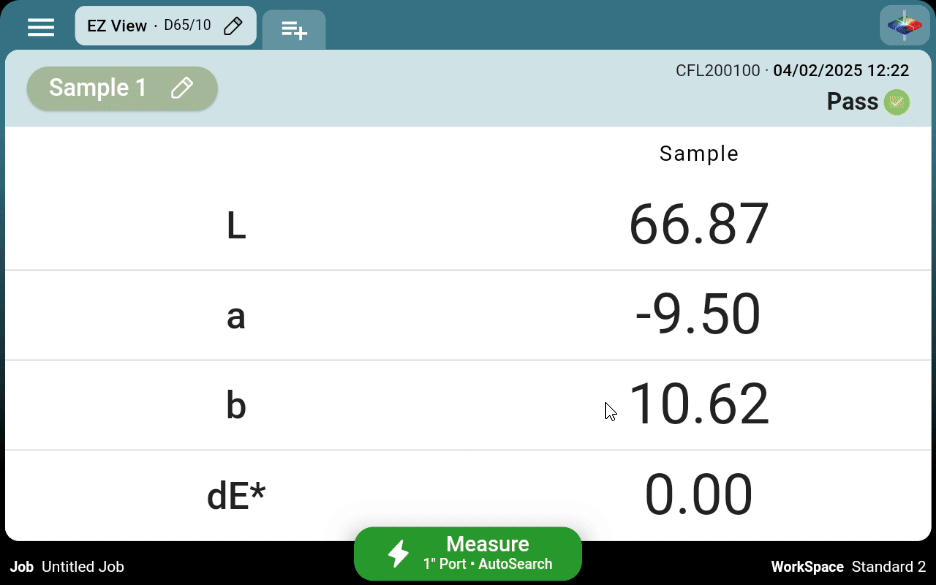

  • The green action button will update to "AutoSearch."
  • Place the sample and tap the MEASURE action button.
  • Essentials will search the configured Workspaces and list only those that match the standardization mode of the current measurement and pass the tolerances.
  • If multiple Workspaces are listed, select one to save.
  • If no WorkSpace Standard Pass for this sample, you will still be able to save the sample to the "No Match" Workspace for later review.
