Aeros Reflectance Validation using EasyMatch QC Essentials

Instructions for Validating your Aeros using EasyCal:

1. Insert the EasyCal Tile Set USB drive into the Aeros

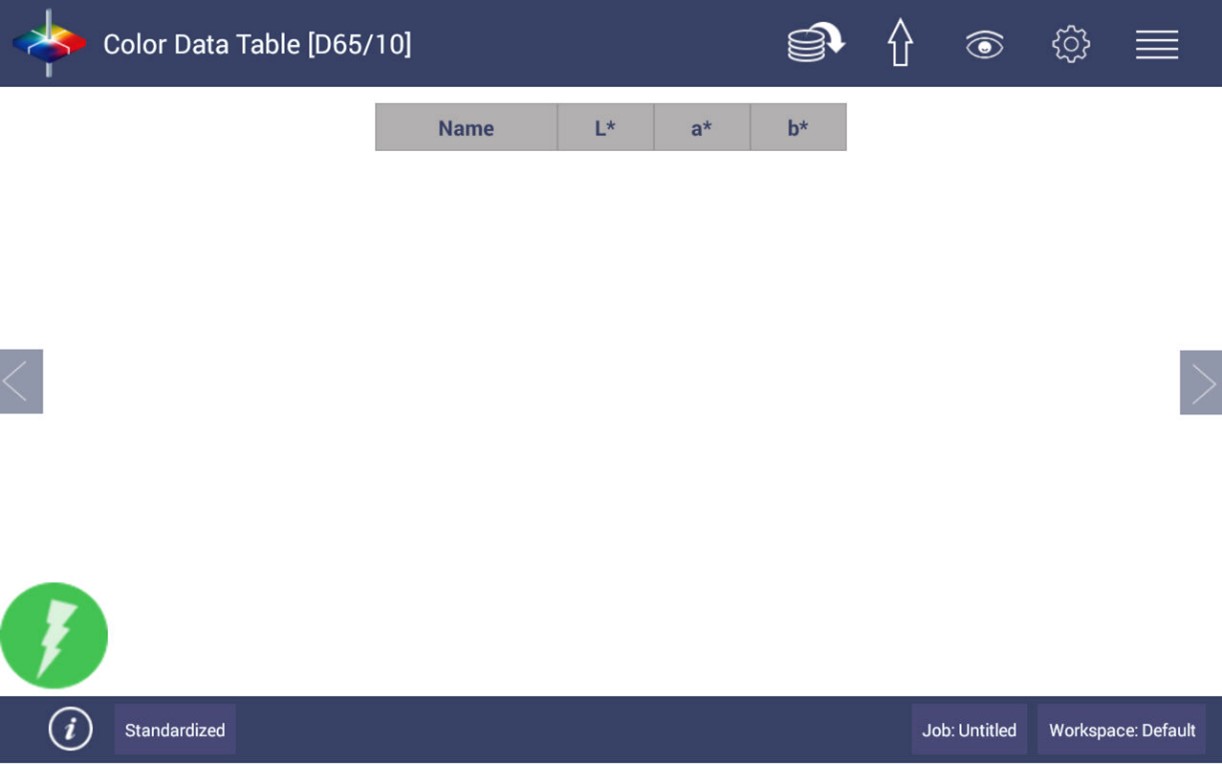

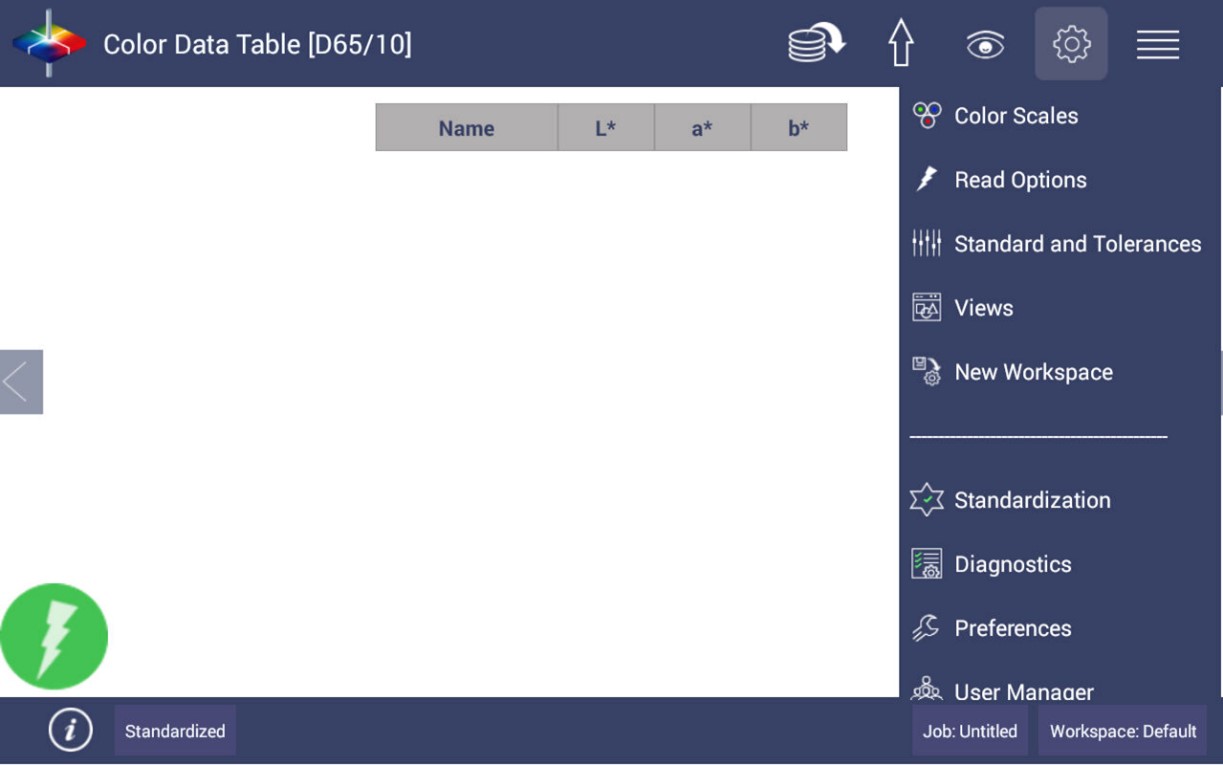

2. Click on the gear icon in the upper right-hand corner of the Aeros screen to configure the color data table to display L*a*b* values and use the D65/10 illuminant observer


3. Record the current position of the horizontal arm, then move the arm to center it over the turntable by moving the sensor head to the 0 position – (after completing the series of measurements for the test, ensure you move the sensor head back to its original position before measuring your product)

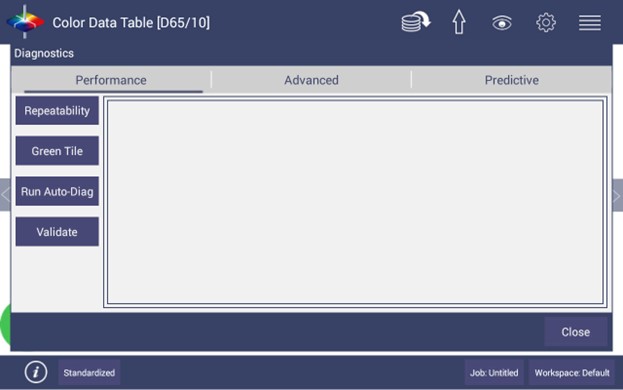

4. Click back onto the gear icon and select ‘Diagnostics’


5. Select ‘Validate’

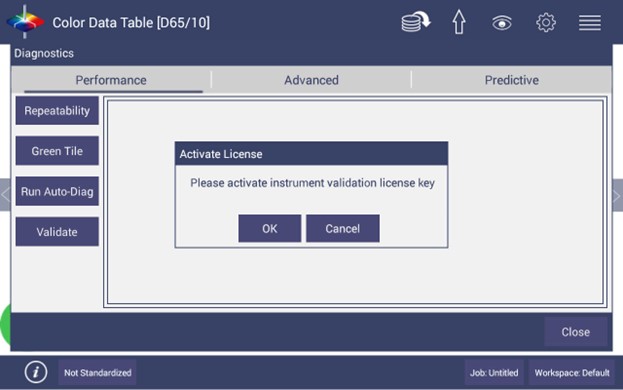

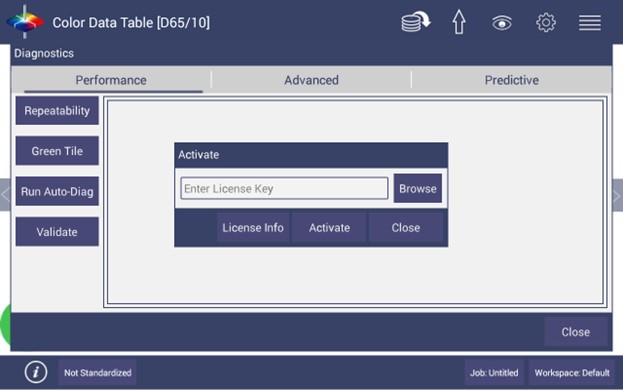

6. Select ‘OK’ and ‘Browse’ to look for license key

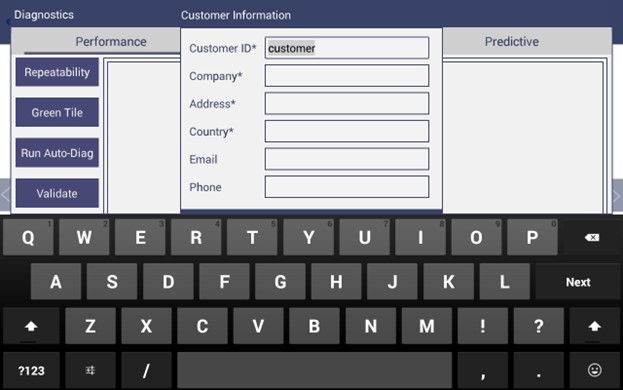

7. Once your license key is selected, enter your company information. This will be used by HunterLab to contact you in the event your tiles fail

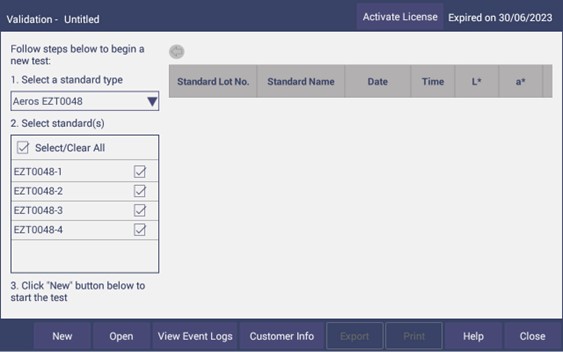

8. Check the ‘Select/Clear All’ button under Select Standards to ensure all four tiles will be measured


9. Click the ‘New’ button on the bottom left corner to begin measuring

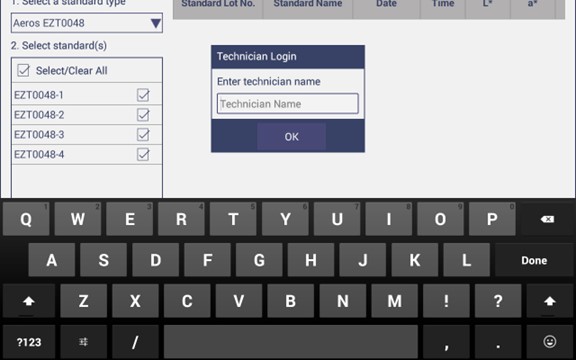

10. Enter the name of the technician performing the test

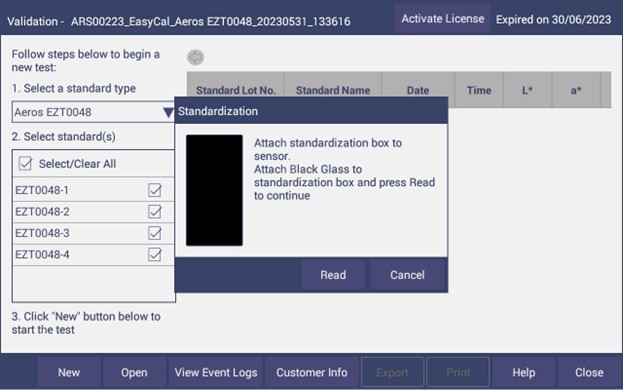

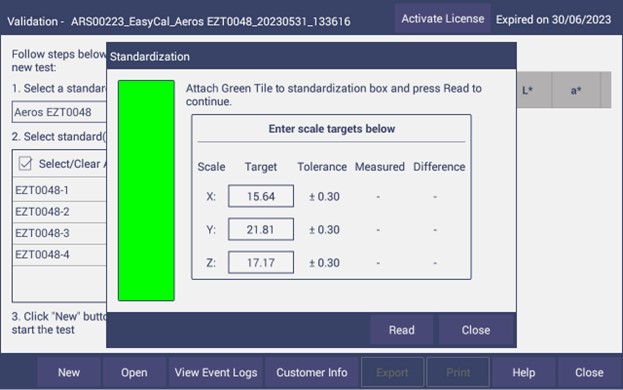

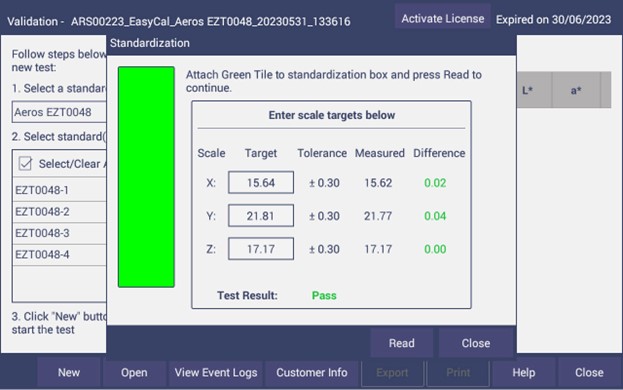

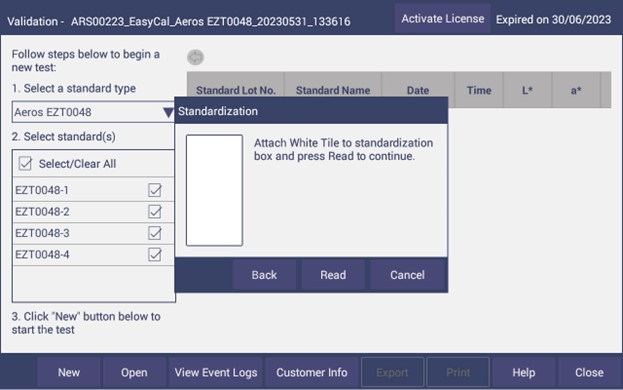

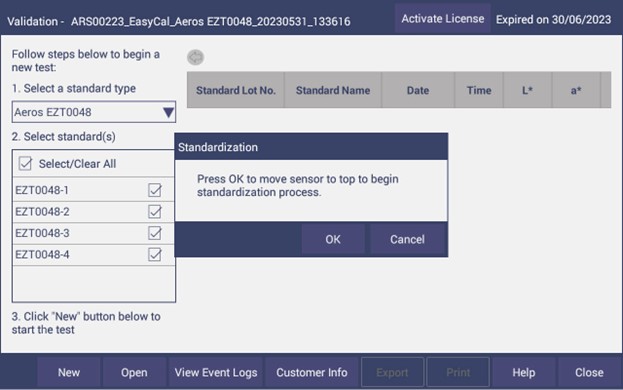

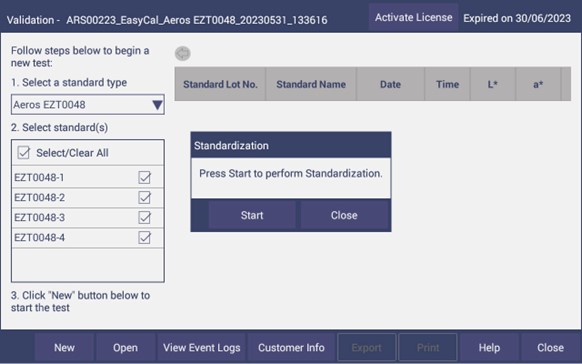

11. Press ‘Start’ and then ‘OK’ to begin standardization and follow along with the prompts beginning with the instrument white tile

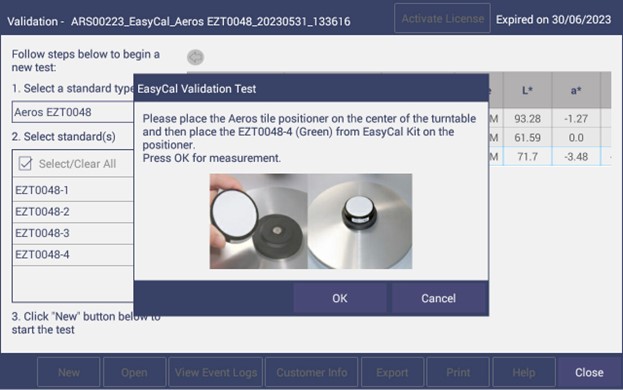

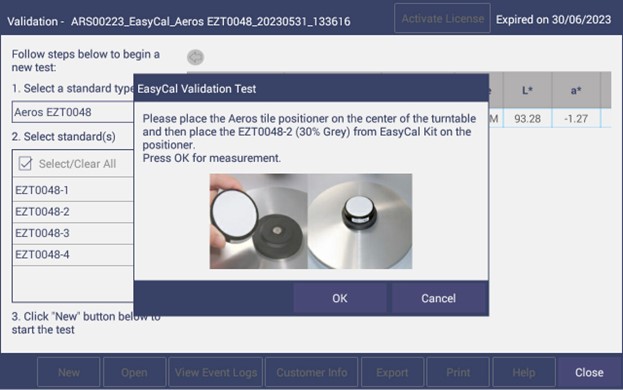

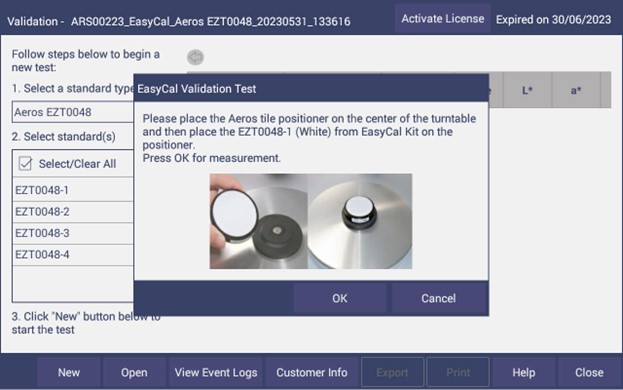

12. After standardization, remove the standardization box and insert the black puck found in the middle of the EasyCal tile kit into the aperture of the turntable and place the EasyCal white tile on top of the puck to begin measuring

    • There will be 5 measurements of each tile, be careful not to move tile until the screen prompts you

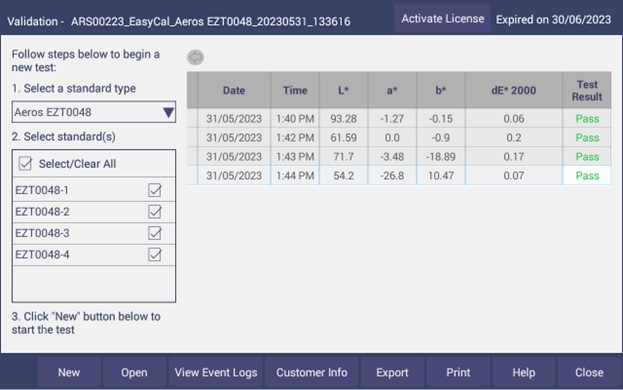

13. Repeat for the remaining 3 tiles

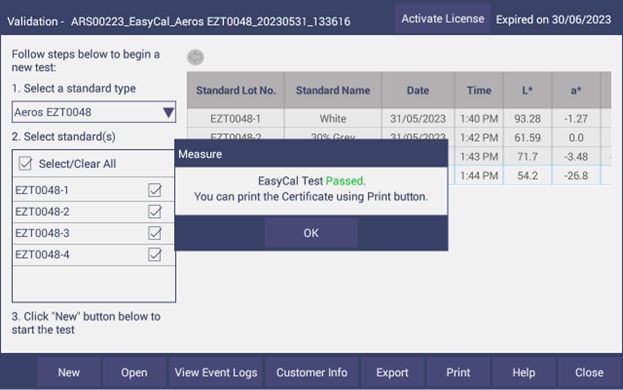

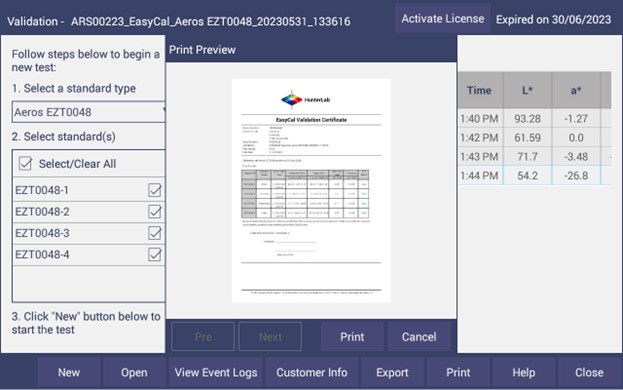

15. Click on ‘Export’ or ‘Print’ for your certificate



For more information click on these links:

Aeros Users Manual


Print EasyCal Instructions:

USVIS and USPRO EasyCal Web Submission Form for Reflectance Measurement Validation

For Sprout users:


EasyCal Instrument Performance Verification Program Instructions

Please note this performance verification program assumes the user is familiar with the instrument and has working knowledge of instrument and EasyMatch QC configuration and operation. If needed, refer to the instrument’s user manual for detailed operating instructions prior to proceeding.

Open the EasyCal Instrument Performance Verification Entry Form. The link can be found here:

EasyCal Instrument Performance Verification Entry Form

  1. Enter your company contact information in the respective fields. This information will be used in your validation report and in the event HunterLab will need to contact you regarding this test. The Tile Set ID can be found at the top of the EasyCal tile set box.
  2. Select ‘Next’ to continue.
  3. Ensure your instrument is turned on and connected to EasyMatch QC. Set the mode to Reflectance Specular Included (RSIN), 1 inch area of view, and UV nominal.
  4. Standardize your instrument as normal.
  5. Configure the Color Data Table to display CIELAB values (L*,a*,b*) and D65/10 illuminant/observer.
  6. Confirm your setup matches the required parameters and click ‘Continue’ to begin taking measurements.
  7. Start with the EasyCal White tile. Hold the tile by its edges. Ensure the tile is clean and free of dirt and fingerprints. Position the tile in the middle of the port plate and secure the tile with the instrument sample clamp.
  8. Click the read sample button in EasyMatch QC and enter the measured values into the entry form.
  9. Once the values are entered, click ‘Next’ to continue.
  10. Repeat this process with the remaining tiles, continuing with the gray tile, followed by the blue tile, then green tile.
  11. After measuring all four tiles, the process is repeated once more for a total of two measurements per tile.
  12. Upon completing the measurements, enter any additional comments or notes to be included with the submission.
  13. Press ‘Submit’ when finalized. The results of this test will be compiled, and you will receive an email from HunterLab containing your certificate upon passing. If your instrument does not pass, HunterLab will contact the email address listed in this form with any questions or additional actions.
  14. Thank you for completing the HunterLab Instrument Performance Verification Program. If you have any questions regarding this test or your results, please contact



Agera Reflectance Validation EasyMatch QC Web Submisison Form

Instructions for Validating your Agera using EasyCal:

  1. Before beginning the validation process,
    • The instructions below assume that the user is familiar with the instrument and has working knowledge of instrument configuration and operation.  Please refer to the User Manual for detailed operating instructions prior to proceeding.
    • Configure the color data table to display L*a*b* values and use the D65/10 illuminant observer. Select the 1"/25mm port plate (MAV) and UV Nominal.
    • Standardize your instrument using its standardization tiles.
    • Refer to the instrument User's Manual for Standardization and Instrument Setup instructions.
  2. Open the EasyCal Verification Submission form by clicking this link:
    EasyCal Instrument Validation Data Submission Form
  3. Fill in your test site information.
  4. Locate the instrument serial number on the back of your instrument and enter it exactly as it appears on the label.
  5. Find the TileSet ID on top of the EasyCal Tile Set box and select it from the drop down list
  6. Begin the measurement process by following the directions on the EasyCal Validation form.
  7. Start with the white tile:
  8. Hold the tile by its edges.
  9. Position the tile in the middle of the port plate, ensuring the indentation on the tile aligns with the marking on the port plate (forward towards the screen).
  10. Click the "Read Sample" button.
  11. Record the measurement values for later entry or enter the measured values directly into the form.
  12. Continue measuring and recording the values of the remaining tiles as directed by the form, following the same procedure as with the white tile.
  13. After measuring all tiles, the process is repeated for measurements of the four tiles, starting again with the white tile and continuing with the other tiles.
  14. Once you have completed and entered all measurements, submit your results to HunterLab for review and approval by clicking the "submit" button in the EasyCal Instrument Validation Data Submission Form.
  15. Upon successful verification (PASS), you will receive an email from HunterLab containing your certificate (PDF Form).
  16. HunterLab will contact the user listed in the form if any problems are found with the submission or the validation is unsuccessful (Fail).

For more information click on these links:

Agera User Manual:

Agera User Manual


EasyCal Instructional Video:


ESSENTIALS Family of Instruments Video:
